T 4

Just Van
Technical Data
Just Van / T 4
Technical Data
just-van-t-001.svg

T 1

 just-van-t-004.svg

T 4

justvan_t5_v2.svg

T 5
Find a dealer
View technical information
Just Van T 4
Price (incl. VAT) a)
Standard chassis Fiat Ducato Light Low Platform
Standard engine 140 MultiJet 3
kW (bhp) 103 (140)
Emission standards Euro 6e-bis
Overall length, approx. 663
Overall width, approx. 220
Overall height, approx. 273 1
Headroom in living area, approx. 190
Towable load braked/unbraked 2000 / 750
Wheelbase, approx. 3800
Bed dimension: Central / middle bed, L x W, approx. 155 x 100 - 78 (○)
Bed dimension: Rear bed, L x W, approx. 200 x 80 / 192 x 75 / 199 x 160
Sleeping berths standard / max. 2 / 3 (○)
Mass in running order (+/-5%)* 2650 (2518 to 2783)*
Manufacturer-specified mass for optional equipment* 509
Technically permissible maximum laden mass* 3499
Permitted number of seats (including driver)* 4
Refrigerator volume (thereof freezer), approx. 131 (15)
Waste water tank, approx. 95
Fresh water tank capacity, total/ Fresh water tank capacity at driving filling 115 / 20
Measurement storage opening right (W x H) 60 x 95
Measurement storage opening left (W x H) 65 x 75
1 Please note that the total height may increase due to additional roof structures and optional equipment..

a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. For the latest information, please always enquire with a local dealer about the prices applicable in your country.

* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order.  The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that Dethleffs uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Dethleffs.  The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below theminimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.  The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.

(○) Optional
Length
663 cm
Width
220 cm
Height
273 cm
Sleeping berths max.
3
Technically permissible maximum laden mass
3.499 kg
Price
Low Profile

Layout T 4

Sleeping: Single beds that convert into a double bed (SB→DB)
Overhead cupboards at the rear (transverse), with single beds featuring provision for DOZ fabric overhead cupboards at the foot of the bed
Textile bag, including provision for a TV bracket on a compact bathroom wall unit
Bathroom with practical swivel wall, including shower fittings and a large washbasin
Handy worktop extension
Entrance: 70 cm wide habitation door
Sleeping: Single beds that convert into a double bed (SB→DB)

Exterior View

Head unit with Apple CarPlay/Android Auto and a rear view camera
Compact van dimensions (2.20 m wide, 2.69 m high) for agile, safe handling
Lifetime body concept: side walls, roof and underbody made of GRP
3.5 tonnes gross weight: high payload, approved for 4 people
Driver assistance systems, including rain and light sensors with automatic headlight dimming and a tyre pressure monitoring system
Head unit with Apple CarPlay/Android Auto and a rear view camera

Living in the

  • T4 with a classic half-dinette

    The T4 is fitted with a classic half-dinette. In other words, by swivelling the driver’s and front passenger’s seats, you can create a comfortable seating lounge for four. The bench seat is fitted with 3-point belts as standard, meaning that four people can travel in it without any modifications. The table can be extended using an add-on module, although this is really only necessary if there are actually four of you sitting at the table.

    The CARONI upholstery adds an interesting touch with its anthracite-coloured fabrics.

    (T4 | CARONI)

  •

    Half-dinette in the T4

    It’s really bright in the seating lounge, thanks to the large, hinged window in the cab roof. The attractive panoramic skylight, situated right in the seating area and shown here in the photo, is part of the popular Family Package. Incidentally, this also includes two Isofix mountings for securely attaching child seats.

    (T4 | CARONI)

  •

    The single beds

    The Just Van T4 and T5 models feature comfortable single beds. In the T5, the beds measure 205 x 80 and 202 x 75 cm; in the T4, they measure 200 x 80 and 192 x 75 cm.
    In both models, simply insert the mattress infill to create a huge sleeping area spanning the full width of the vehicle.

    (T5)

  •

    Convert the single beds into a double bed

    Simply pull out the drawer-like centre section, insert the additional upholstery – and you’re done! Two single beds quickly become one huge double bed.
    In this configuration, access is via an attachable ladder.

    (T5)

  •

    Cleveres Schwenkbad im T4

    Einfach Rückwand umklappen und schon wird aus dem Bad des T4 eine rundum kunststoffverkleidete Duschkabine - mit eigener Brausearmatur.
    Die Rollotür hat gleich zwei Vorteile: zum einen ist sie innen wasserdicht versiegelt, so dass es keinen Duschvorhang braucht. Zum anderen kann die Tür z.B. zum Lüften auch mal offen bleiben und trotzdem bleibt der Durchgang vom Schlafzimmer zur Sitzgruppe offen.

    (T4)

Variety of choice

  • Upholstery
Jupiter
  • Wood décor
Noce Nagano

Dimensions

1
2
3
4
5

T 4

1 Length 663 cm
2 Height 273 cm
3 Width 220 cm
4 Headroom 190 cm
5 Wheelbase 3800 mm

140 MultiJet 3

Fuel Diesel

6-gear

CCM
2.184
Power
140 hp

Weight

Technically permissible maximum laden mass
3.499 kg
Mass in running order
2.650 kg
Manufacturer-specified mass for optional equipment
509 kg
Towable load braked
2.000 kg
Towable load unbraked
750 kg
Electrical installation
Standard equipment
Awning light 12 V
EBL with separate FI protection switch
LED lighting throughout the vehicle
Functional lighting (surface-mounted and recessed spotlights)
Automatic switch-on/disconnect for starter battery, leisure battery and refrigerator
On-board control panel
Leisure battery AGM, 95 Ah
Number of sockets: 1x 12V, 5x 230V, 4x USB
Optional equipment
Solar power system 110 watt
Lithium (LiFePo4) battery 2x150Ah (300Ah) incl. 45 A charge booster, instead of standard AGM battery
Lithium (LiFePo4) battery 150 Ah incl. 45 A charge booster, instead of standard AGM battery
Heating
Standard equipment
4 kW diesel hot air heating with hot water boiler and integrated height kit
Heating in the seating unit for optimum heat distribution, built-in
Optional equipment
Diesel hot air heating 6 kW with 1.8 kW electric heating element incl. digital control element and integrated height kit
Digital control element for hot air heating
Floor heating electric (partial)
Water supply
Standard equipment
Submersible pump
Fresh water tank in insulated and heated area
Optional equipment
Insulated waste water tank
Switch for water pump
Gas supply
Standard equipment
Storage space for a gas cylinder with a filling weight of 2.75 kg
Show more

Downloads

More vehicles from the Just Van series

0 Results
Filter
  • Body type
  • Sleeping berths
  • Bed types
  • Length
  • Number of seats
Just Van

T 1

Technically permissibile maximum laden mass*
3.499 kg
Sleeping berths max.
3
Height
273
Length
599
Pricea)
Just Van

T 5

Technically permissibile maximum laden mass*
3.499 kg
Sleeping berths max.
3
Height
273
Length
698
Pricea)

Important information regarding the selection of your motorhome

Important information regarding the selection of your vehicle

When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:

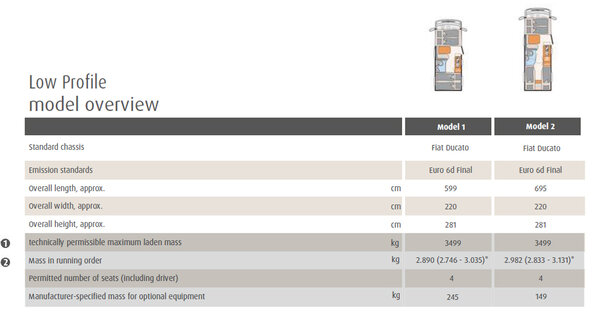

1. The technically permissible maximum laden mass…

… is a value set by the manufacturer which the vehicle may not exceed. Dethleffs specifies a layout-related upper limit for the vehicle, which can vary from layout to layout (e.g. 3,500 kg, 4,400 kg). You can find the corresponding specification for each layout in the technical data.



2. The mass in running order…

... consists – to put it simply – of the basic vehicle with standard equipment plus a standard weight of 75 kg for the driver. It is legally permissible and possible for the mass in running order of your vehicle to deviate from the nominal value stated in the sales documents. The permissible tolerance is ± 5 %. The permissible range in kilograms is given in brackets after the mass in running order. In order to provide you with full transparency regarding possible weight deviations, Dethleffs weighs each vehicle at the end of the line and informs your trade partner of your vehicle's weighing result for forwarding to you.

Detailed explanations on the subject of mass in running order can be found in the “Legal Information” section.

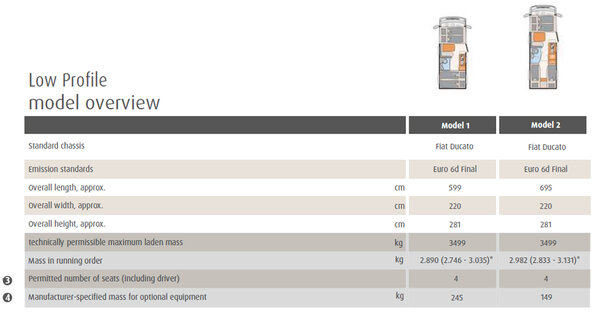

3. The permitted number of seats (including driver)…

… is determined by the manufacturer in what is referred to as the type-approval procedure. This results in what is referred to as the mass of the passengers. For this, a standard weight of 75 kg per passenger (without driver) is calculated.

Detailed explanations on the subject of mass of the passengers can be found in the “Legal Information” section.


4. The manufacturer-specified mass for optional equipment…

… is a value set by Dethleffs per layout for the maximum mass of optional equipment that can be ordered. This limit is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle load capacity of the vehicles delivered by Dethleffs. If, in exceptional cases, the weighing at the end of the line nevertheless shows that the actual load capacity falls short of the minimum pay-mass due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle.

Detailed explanations on the subject of the effects of the tolerances on the minimum pay-mass and the payload can be found in the “Legal Information” section.

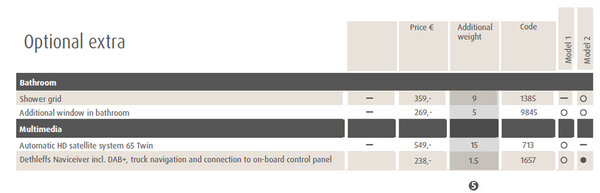

5. The additional weight of optional equipment and packages...

... increases the actual mass of the vehicle (= mass in running order plus selected optional equipment) and reduces the pay-mass. The specified value shows the additional weight compared to the standard equipment of the respective layout. The total weight of the selected packages and optional equipment must not exceed the manufacturer-specified mass for optional equipment.
